Fixing-Flat-Roof-Tripod-Solar-mounting-system

Is a Rail Tripod and non-adjustable System designed for flat rooftop. It can be fixed by ballast block or screw. Also, based on Aluminum 6005-T5 and SS304 material design and produced , which make it have a good corrosion resistance and 25 service life.

At the same time, we can provide different fixed installation angles: 10° / 15° /20°/25°/30°

Our System advantages

Easy to install

The entire tripod comes pre-assembled by our factory

Adjustable

The universal panel clamp fits panel with thickness from 30~40mm;

Various types of installation meet various requirements

1. Suit for Flat roof with foil, bitumen, gravel, green roof, metal, concrete, open spaces

2.Suit for Panel with landscape or Portrait

Fix-Landscape-Flat-tripod-solar-mounting-system

Fix Landscape Flat tripod solar mounting system

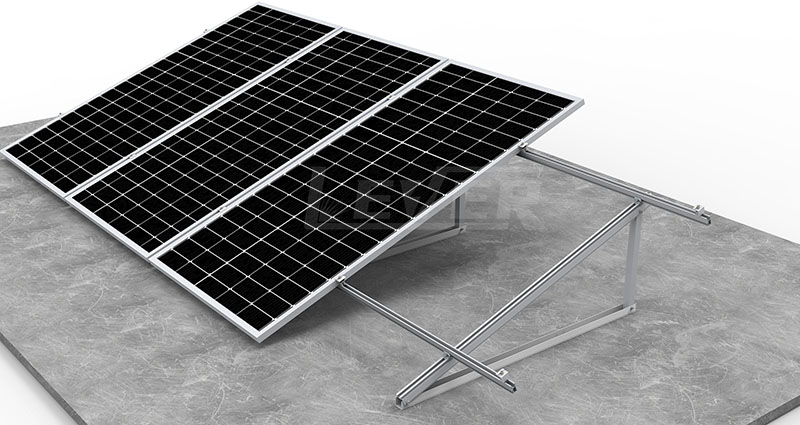

Fix-portrait-Flat-tripod-solar-mounting-system

Fix portrait Flat tripod solar mounting system


Specifications


Roof Inclination5° max.
Wind SpeedUp to 50m/s
Module orientationPortrait / Landscape
Building height50 m max
Warranty15 Years
Service Life25 Years
CertifaicateCE,ISO9001

Flat-Roof-Tripod-System-Install-03

Downland


If you need to learn more, you can click on the following file to download and further understand



  15 years Warranty

   Cataloge

   Installation Manual

   Certification
